Versatility of use
Securing the practice
Exists in high version density
Fire rating for the HA-I

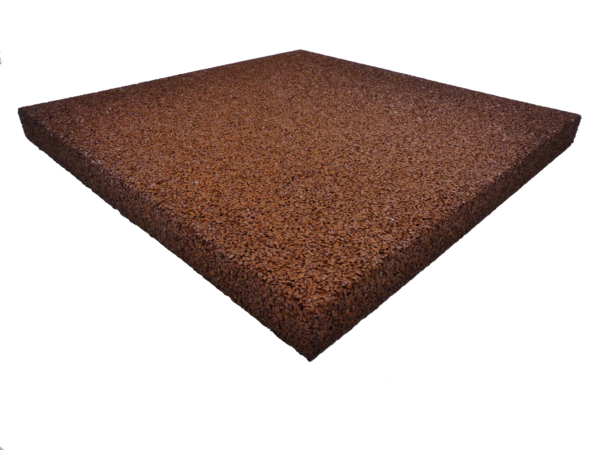

DESCRIPTION : Rubber tile
MATERIALS : Recycled tire aggregate and agglomerated by a resin
COLOR : Black Red Green Gray Chocolate
SURFACE APPEARANCE : Grainy
DIMENSIONS :
| DALLE TIR 750 | HA-I 1000 SHOOTING SLAB | |
|---|---|---|
| Length | 500 mm | 500 mm |
| Width | 500 mm | 500 mm |
| Thickness | 40 mm | 40 mm |
| Weight | 7.5 kg | 7.5 kg |
| Fire classification | No | Dfl-s1 |
| Density | 750 kg/m³ | 1000 kg/m³ |
| Length and width tolerance: +/- 3% at 20° Thickness tolerance: +/- 3 mm between slabs |
||

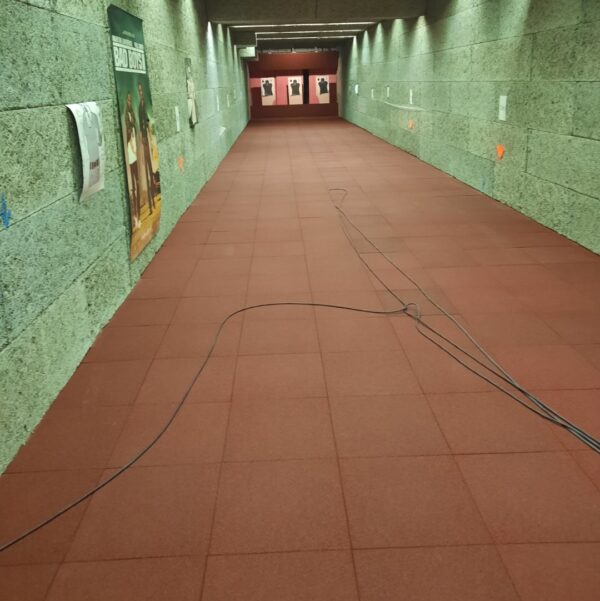

Ballistic rubber safety tile making it possible to secure shooting range floors, slowing and trapping projectiles in its thickness.
Secures shooting practice by preventing any risk of ricochet and/or return of projectile towards the shooter.
May be covered with a special type resin Mobyflex, in order to obtain a smooth surface that is easy to clean.
Contact us for another use.
FREE INSTALLATION
The slabs must be forcefully inserted between 4 walls which act as a belt
INSTALLATION GLUE TO THE GROUND IN A STAGGERED
The tiles are directly glued to the floor with glue prescribed (PU74 glue – 1 cartridge /m² or PU93 – 1kg/m²).
INTERCONNECTED INSTALLATION
The tiles are drilled and supplied with connectors to assemble them staggered.
OPTION
The tiles can be covered with Mobyflex resin (see technical sheet) in order to obtain a smooth and easy to clean (see photo on the left).
Refer to our installation sheet.
Hexdalle® Tir slabs do not require any specific maintenance, only periodic cleaning is recommended, depending on their visual condition. Cleaning can be carried out with water (excluding high pressure jet) or using CLEANDALLE FC bactericidal cleaner. A finishing wax can be applied to the tiles – Hexdalle HBP wax – to make them easier to clean.
Warning: not resistant to solvents or acid attacks.
Sold individually or by complete pallet.
PALLETS : lost 1,100 X 1,100 mm
PACKAGING : We take particular care in packaging to avoid any problems that may arise. during the transport.
The products are packaged with white stretch film and “France Construction” guarantee tape. In order to safeguard your rights and interests, we ask you to check the condition of the goods upon receipt.
CONDITIONING :
