GAMME TIR SECURITIR SLAB

SECURITIR SLAB

Practice Securisation

Fire rated

Sound reduction

Easy to setup

Features

DESCRIPTION : Rubber tile.
MATERIALS : Recycled rubber granulate and agglomerated by a resin.
COLOR : Black Red
SURFACE APPEARANCE : Grainy

SAFETY SLAB
Length 500 mm
Width 500 mm
Thickness 45 mm
Unit weight 10.7 Kg
Fire classification Ds2-d2
Density 1000 Kg/m³
Tolerance +/- 3% at 20°

Use

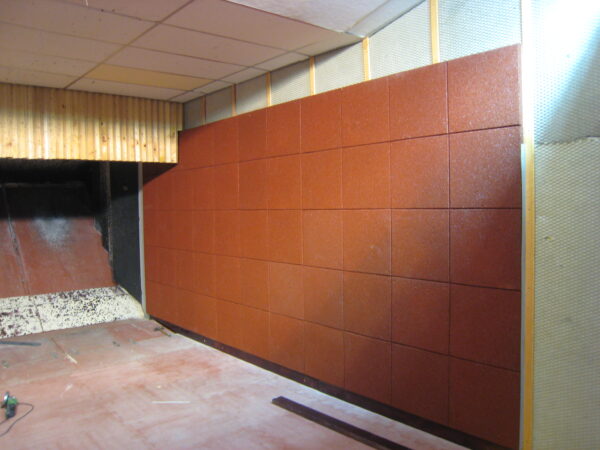

Ballistic rubber safety tile allowing to secure the shooting range walls, by slowing down and trapping the projectiles.

Secures shooting practice by preventing any risk of ricochet and/or return of projectile towards the shooter.

Contact us for another use.



Standards

  • EN 13501-1: 2018 : Classification of reaction to fire Ds2-d2
  • Fire behavior : D
  • Smoke production : s2
  • Flaming particles : d2



SECURITIR SLAB

Laying / Installation

GLUE INSTALLATION

The tiles are directly glued to the wall with glue prescribed (hightack glue – 2 cartridges/m²)

SCREWED INSTALLATION

The slabs must be drilled then screwed to the support wood type OSB board or battens, with screws suitable (non-metallic).

Contact us for any other installation method



Maintenance

Hexdalle® Securitir slabs do not require any specific maintenance once installed on the wall.
A periodic visual check of their condition is nevertheless recommended, in order to replace those which may be damaged by gunfire.

Warning : not resistant to solvents or acid attacks.

Conditioning / Packaging

Sold individually or by complete pallet.

PALLETS : lost 1,100 X 1,100 mm

PACKAGING : We take particular care in packaging to avoid any problems that may arise. during the transport. The products are packaged with white stretch film and “France Construction” guarantee tape. In order to safeguard your rights and interests, we ask you to check the condition of the goods upon receipt.

CONDITIONING : For Securitir 45 mm slabs – 23 m² maximum per pallet
