GAMME TIR HEXBLOC

HEXBLOC

Safe shooting slowing down/trapping them projectile flashes
Easy to handle and fast to rise
Multiple applications possible
Interchangeable blocks/easily replaceable
Good frost resistance

Features

DESCRIPTION : Solid rubber block.
MATERIALS : Recycled aggregate and agglomerated by a resin.
COLOR : Black  (other colors on request)
SURFACE APPEARANCE : Grainy

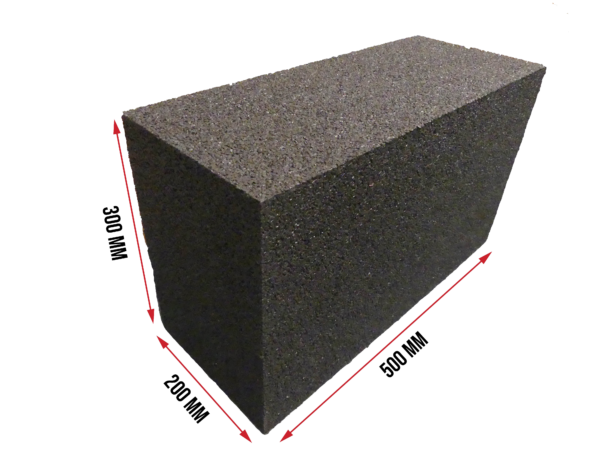

DIMENSIONS :

HEXBLOCK R HEXBLOCK RI HEXBLOC BE
Length 500 mm 500 mm 500 mm
Width 200 mm 200 mm 200 mm
Height 300 mm 300 mm 300 mm
Weight 25 kg 34 kg 38 kg

Tolerance +/- 3% at 20° / Maximum temperature
-30° to 80° / Operating temperatures from -5° to 35°

Use

The main function of the Hexbloc® is to secure practicing shooting by slowing down and/or trapping shards of projectiles, in the event of ricochets.

It is also an aesthetic material, which- once mounted on a wall -becomes a clean and uniform facade.

This makes it possible to hide the bullet trap sand to do without anti-return curtains.

Consumable to be changed as the blocks wear.
Our Hexblocs® can be used indoors (RI-BE) as outside (R – RI – BE).

Standards

HEXBLOC® R, HEXBLOC® R-I AND HEXBLOC® BE

  • EN ISO 5470-1 : Wear resistance – compliant
  • NF EN 71-3 : Chemical analysis – compliant

HEXBLOC® R-I AND HEXBLOC® BE

  • EN 13501-1 : Euroclass Dfl-s1 fire classification
  • VOC: Volatile Organic Compounds A+
HEXBLOC

Laying / Installation

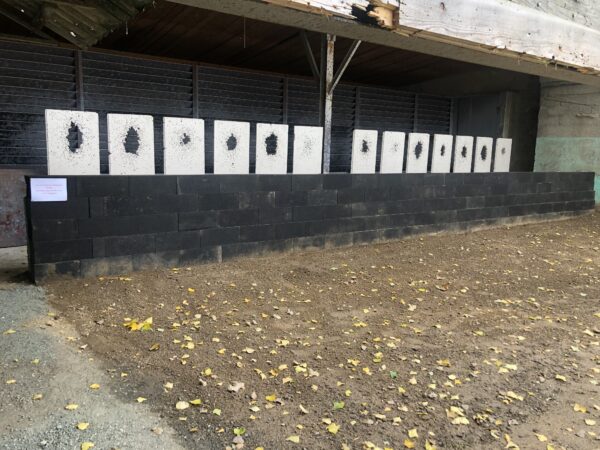

VERTICAL “WALL” INSTALLATION
The blocks are mounted staggered on top of each other until you reach the desired height. Cutting possible using a log/bow saw (blade length greater than 50 cm)

HORIZONTAL “FLOOR” INSTALLATION
The blocks are placed flat on a hard support to form a 200 mm thick rubber slab. A resin complex can be applied over it to make the floor smooth.

Ammunition stopped

HEXBLOCK R HEXBLOCK RI HEXBLOC BE
Warhead retarder
(no stopping)
  • 9 mm FMJ
  • Cal. 45 ACP
  • Cal. 357 Mag
  • Cal. 44 Mag
  • Cal. 223 (5.56 mm)
  • Cal. 12
  • Cal. 308 (7.62 x 51 mm)

Please note, these products are not human ballistic protection.
Do not place yourself behind a Hexbloc when the shooter is in place.
We decline all responsibility for the consequences that their use for other purposes or in other contexts could cause.
INTERNAL TESTS CONDUCTED BY FRANCE CONSTRUCTION-HEXDALLE / CLASSIFICATION BY CALIBERS / 3 SHOTS

Maintenance

Hexblocs® do not require any specific maintenance.
Cleaning can be done with water (except high pressure jet)
or using our CLEANDALLE FC bactericidal cleaner.

Caution: Not resistant to solvents or acid attacks.

Conditioning / Packaging

Sold individually or by complete pallet.
PALLETS : lost 1,100 X 1,100 mm
PACKAGING : We take particular care with packaging to avoid any problems that may arise during transport. The products are packaged with white stretch film and “France Construction” guarantee tape. In order to safeguard your rights and interests, we ask you to check the condition of the goods upon receipt.

CONDITIONING :
39 Hexbloc R maximum per pallet
29 Hexbloc R-I maximum per pallet
26 Hexbloc BE maximum per pallet
